SS400 HDR IP Color Camera
Flexible and Ready for Any Mission
The SS400IP uses a standardized IP streaming format, making it easy to integrate with virtually any automated platform or vehicle. With both dome and flat port configurations, the system can be deployed across a wide range of installations.
It has already proven its versatility on ROVs, unmanned surface vehicles, shoreline inspection vehicles, automated submersibles, and many other applications – showing that the SS400IP is built to adapt wherever it’s needed.
Features
True Wide Dynamic Range -120dB
83° Underwater Diagonal Angle of View – No Perceptible Distortion
Lightweight, Low Latency IP Streaming
Full HD Resolution / 2 Mega Pixels
Three simultaneous streams: 2X H.264 + 1X MJPEG, independent frame rate & bandwidth control
24 Hour Recording
Onboard Memory: 256 GB (SDHC), (512GB optional)
High Sensitivity, High Dynamic Range (HDR) Video
ONVIF Compatible
Power over Ethernet or 12-24 VDC Power
Depth Rating: 500m

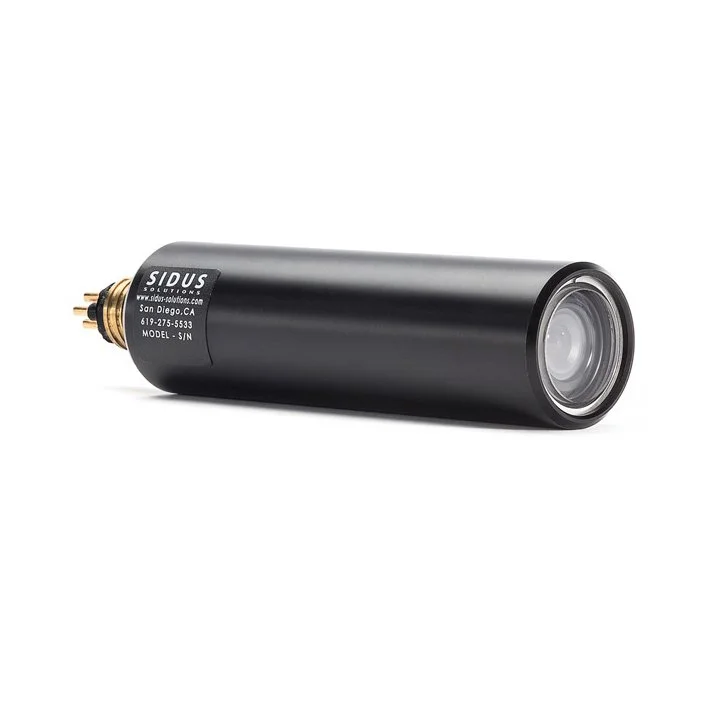

Sidus’ SS400 HD IP Network Color Camera is a lightweight, compact video camera. It employs a 600 TVL color module that has a 1/3” Super HAD CCD imaging sensor designed to be noise-reducing. This impressive high-resolution model presents video images with a wide dynamic range. Video output is provided in NTSC or PAL formats.
The lens is a standard 3.6 mm that offers 98° FOV in water. Also available are 2.9 mm, 6 mm, and 8 mm. Other available options are customer-selected connectors and input voltage options. Factory presets include white balance, shutter speed, day and night function, AGC, image inversion, and color.
The durable acetal housing is corrosion-resistant and will provide years of quality service. Other housing options are available to best suit the client’s needs.
